The industrial inkjet printers for printing company logos, batch numbers and other markings and information are a proven, professional system in the production process and boast a high degree of flexibility. The print results are always of a consistent, high-contrast quality, offering an outstanding print image with high-resolution small coding.
The marking systems can be easily integrated into existing production lines and networks. A compact print head, high IP component protection, simple operation and all important interfaces are provided. Whether it be database access or other requirements regarding production statistics, this software means you are always up-to-date and also able to support subsequent processes and activities, such as traceability, quality assurance and customer satisfaction with your products in general.
Hi-Res (High-Resolution technology) is also used for applications with complex requirements involving small fonts and multi-line printing as well as for jobs with minimal spatial requirements and very fast printing speeds. This technology enables fast, high-resolution printing of primary packaging in single- or multi-lane packaging machines, e.g. for food and many industrial applications.
parallax background

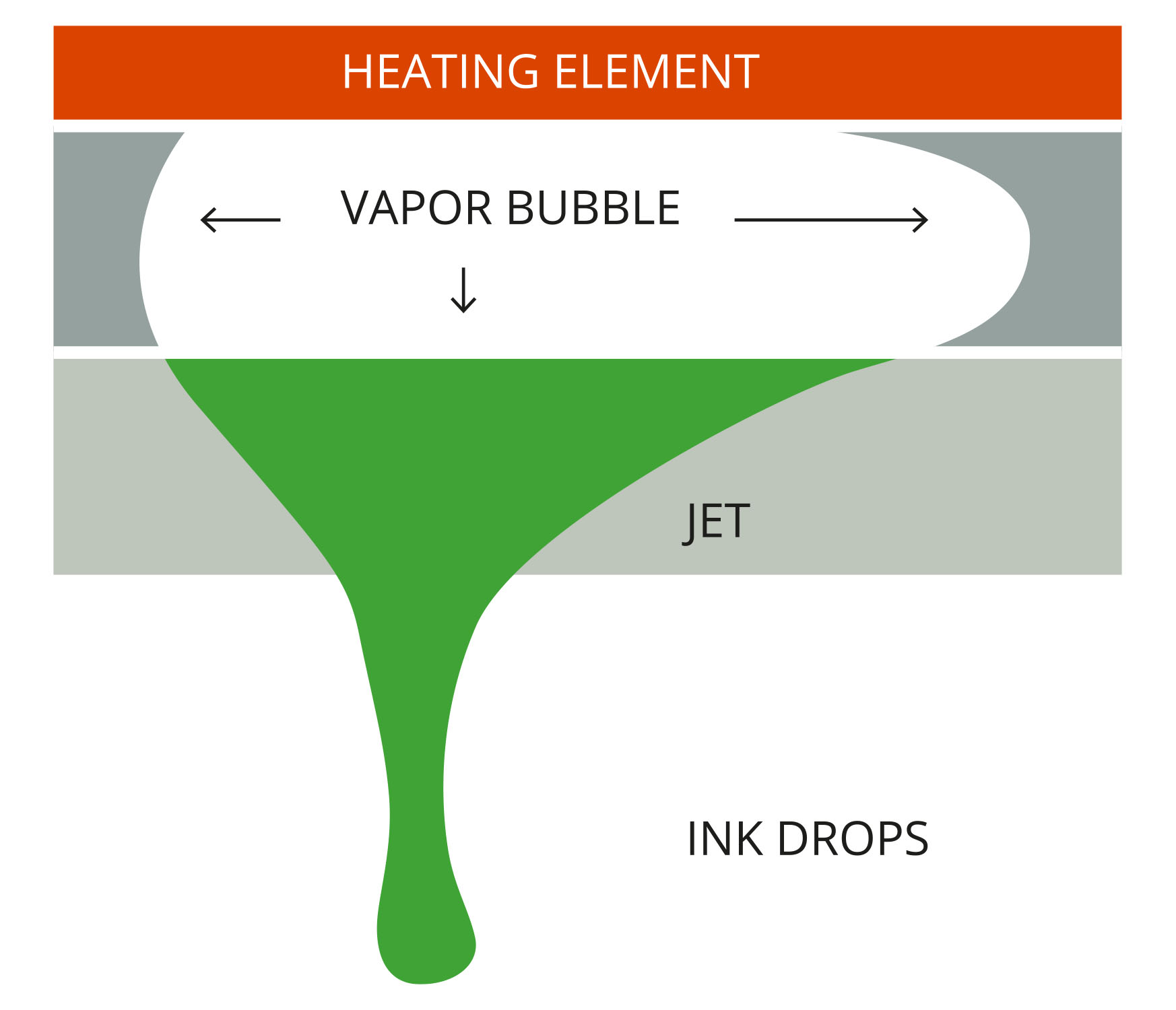

HOW A TIJ PRINTER WORKS

TIJ_Funktionsweise 2_EN

The pressure from each individual nozzle of the cartridge of the inkjet printer (thermal inkjet printer TIJ for short, also thermal inkjet coder or bubble jet process) is carried out by a heating element. For this purpose, there is a small ink chamber with a heating element behind each nozzle. When activated, the heating element generates a gas bubble in millionths of a second, resulting in a pressure surge and thus ejecting the smallest droplets of ink from the activated nozzle of the print head. Subsequently, the contraction of the gas bubble leads to the refilling of the ink chamber from the ink reservoir. No marking fluid escapes from the print head of the ink cartridge when it is idle. A high-resolution print image for graphics, logos, text and alphanumeric characters with up to 600 DPI can be achieved in the marking of products and workpieces.

parallax background

best setup

for perfect printing

HI-RES

(TIJ) Thermal Inkjet Printer/b>
Compact High Resolution
1 mm - 101,6 mm font height

HI-RES

Mobile Inkjet Handheld Printer
Mobile High Resolution
1mm - 25,4 mm font height

HI-RES

Z640 PLUS with Graphjet50
Modular, high-resolution
up to 51 mm

HI-RES

Z640 PLUS with Graphjet102
Modular, high-resolution
up to 102 mm

(TIJ) Thermal Inkjet Printer

  • USB 2.0, Ethernet data transfer of text/graphics
  • intuitive Remote Manger Software
  • 10“ Touch Display
  • Auflösung 600 dpi
  • 1- 12,5 mm font size/graphics height
  • Printing speed up to 400 m/min.
  • IP40 Rating
  • Fonts: Windows TrueType (all fonts)
  • Barcodes EAN 8, EAN 13, EAN 128, Code 2/5, Code 2/5 check, Code 39, Code 39 check, Code 128, DUN14,
    GS1 Databar, Datamatrix, GS1 Datamatrix, QR-Code, PPN-Code
  • 3GB Internal memory
  • Counting functions for up to 8 characters
  • Repeat function
  • Fixed and variable text fields and barcodes
  • Variable texts (automatic or external)
  • Real-time consumption recording
  • 0°, 90°, 180°, 270° field rotation
  • Operating system customized Android/Linux version
Data
Ambient conditions Temperature 5-40°C
Humidity/ 10-90% not cond.
Electrical connection100-240V~ 50/60 Hz
Resolution600 dpi
Font size1 – 12,5 mm
ConnectionsRS232, Lan 10/100/1000 Mbit, USB2.0
Inputs Ink level, rotary encoder, print start
Housing Stainless steel, IP40 97 x 82 x 122 mm (H x B x T)

Z640 Plus

Z640-Plus GRAPHJET50 GRAPHJET102
  • 12,1" touch display
  • Intuitive graphical menu
  • GraphJet50/GraphJet102 connectable
  • L@ncode® remote management software
  • Remote service via internet
  • TeamViewer: fast, online remote access and support
  • Resolution: 600 x 192 dpi
  • 51/102mm font size/graphics height
  • Printing speed up to 90 m/min.
  • IP54 rating
  • 50 GB internal memory (64 GB SSD)
  • Fonts: Windows TrueType
  • Barcodes
  • GS1 128, Code 128, ITF, EAN 8, EAN 13,
    UPC A, Code 39, 2/5 Industrial, 2/5 Interleaved,
    CodaBar, PDF 417, DataBar,Data Matrix, QR
  • Automatic calendar, date printing
  • Counting functions for up to 9 characters
  • Repeat function
  • 0°,90°,180°, 270° text rotation
Data
Print head GraphJet50/GraphJet102
Ambient conditionsTemperature: 5-45°C
Humidity: 0-90% non-cond.
Electrical connection80-240VAC 50/60 Hz
Font size51 mm, 102 mm
Connections2x RS-232, 10/100/1000 Mbit/s LAN, USB 2.0, alarm indicator (BCD)
Connections, optional WiFi, Bluetooth®
Inputs Ink level, rotary encoder, Start Print
HousingStainless steel, IP54, 99.5 x 251 x 215 mm (H x W x D)
Data
Print head: GraphJet50 GraphJet102
Font size 51 mm 102 mm
Ambient temperature 5-45°C
Humidity: 0-90% non-cond.
Electrical connection 80-240VAC 50/60 Hz
H x W x D 100 x 50 x 175 mm 150 x 60 x 215 mm
Housing Stainless steel, IP54

Mobile Inkjet Handheld Printer

  • USB 2.0, Ethernet data transfer of text/graphics
  • Dual 18650 Lithium Battery, rechargeable up to 80 m/min
  • 5“ Touch Display
  • Resolution 600 dpi
  • 1-25,4 mm font size/graphics height
  • bis zu 90 m/min. Printing speed
  • IP40 Rating
  • Fonts: Windwows True Type (all Fonts)
  • Barcodes EAN 8, EAN 13, EAN 128, Code 2/5, Code 2/5 check, Code 39, Code 39 check, Code 128, DUN14,
    GS1 Databar, Datamatrix, GS1 Datamatrix, QR-Code, PPN-Code
  • Internal memory up to 1200 Text/Grafics
  • Counting functions for up to 8 characters
  • Repeat function
  • Fixed and variable text fields and barcodes
  • Variable texts (automatic)
  • Real-time consumption recording
  • 0°, 90°, 180°, 270° field rotation
Daten
Ambient conditions Temperature 5-40°C
Humidity/ 10-90% not cond.
Electrical connection100-240V~ 50/60 Hz
Resolution600 dpi
Font/Grafic size1 – 12,4 mm
Connections RS232, Lan 10/100/1000 Mbit, USB2.0
Inputs Ink level, rotary encoder, print start , barcode monitoring (Scanner)
Housing Stainless steel, IP40 97 x 82 x 122 mm (H x B x T)
