Large character printers are equipped with high-performance, intelligent electronics and nozzles with a high switching frequency. This facilitates precision, large-format, low-resolution printing even in fast production processes. You can apply digits, numbers, codes and much more to a variety of surfaces and materials. And this gives you maximum efficiency in your manufacturing process. The inkjet printers feature the latest interfaces, so that they can be optimally integrated into your existing systems. Our proven large character printers will provide you with outstanding performance, even in tough environments, while ensuring high-contrast coding with alphanumeric texts, expiration dates, counters and production batches directly on flat, curved and irregular surfaces. A reliable and efficient printing system suitable for a wide range of application contexts. It makes for a low total cost of ownership (TCO) and offers multiple benefits, better IP protection and consistent and reliable performance, even in tough production environments characterised by humidity, dust or high temperatures.
Thanks to the circulating ink supply system with its continuous and automatic agitation of the ink and the innovative nozzle design of the print head technology, heavily pigmented and viscous inks can also be used for labelling.

The reliable 7/16/32/48-nozzle print heads are made using high-efficiency solenoid technology. We use chemical-resistance Teflon compounds and high-quality stainless-steel connections. These offer excellent impact and vibration resistance on production lines. For more quality and reliability in marking secondary packaging.

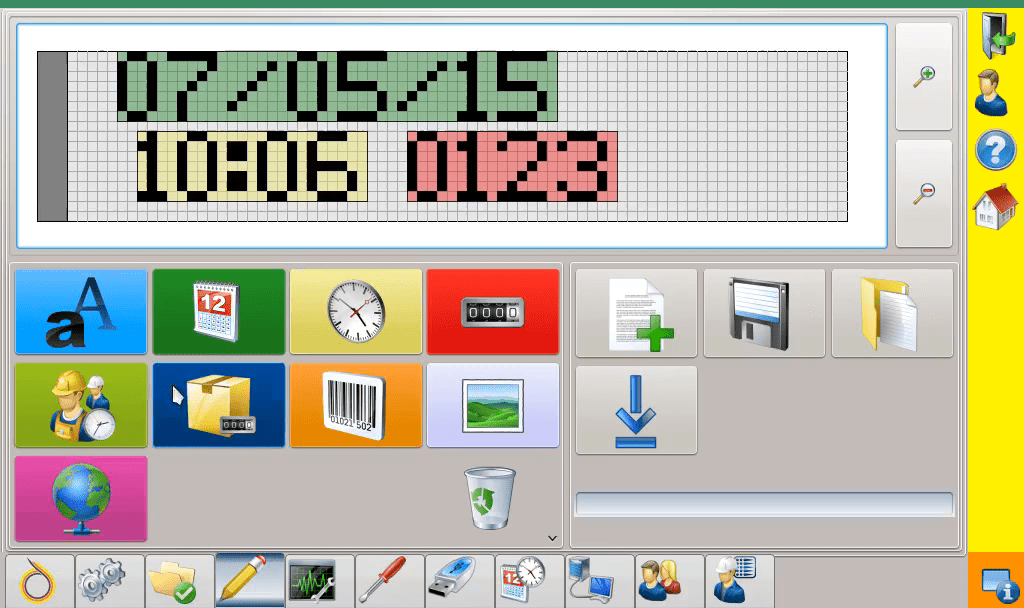

The SIGTEK marking system, equipped with a stainless-steel housing and analogue operating concept, is suitable for simple and repeated marking work. High-resolution graphics and multi-line texts can be printed reliably and intuitively with the Lite Z101, Z402 or Z408. A graphical touch display is used to display and interactively create the print result.

LARGE CHARACTER PRINTERS

Large Character Printers/Control Unit

Print Heads

LARGE CHARACTER PRINTERS

Tanks

parallax background

Powerful & intelligent

large-format printing

LARGE CHARACTER PRINTERS

SIGTEK (opt. pigmented)
Scalable, 7-nozzle print head

LARGE CHARACTER PRINTERS

Lite Z101
7-nozzle print head

LARGE CHARACTER PRINTERS

Z402
Scalable, 7/16-nozzle

LARGE CHARACTER PRINTERS

Z408 (opt. pigmented)
Scalable, 7/16/32-nozzle

SIGTEK

LARGE CHARACTER PRINTERS print head
  • 7-nozzle print head
  • Single-line labelling
  • 20–40mm font size
  • Printing speed up to 150 m/min.
  • IP65 rating
  • Up to 8 fixed texts can be called up directly
  • Analogue-based user interface
  • Easy to use
  • Compact design
  • Easy data transfer via RS-232/422/485
  • Optional integrated ink circulation for pigmented marking fluids
  • Easily refillable 1-litre/10-litre ink reservoirs
  • Up to 5x7-pixel text/graphics can be combined
  • High-speed modes possible
  • Script functionality for special applications
  • High reliability
Data
Ambient conditionsTemperature 0-40°C
Humidity: 10-90% non-cond.
Electrical connection100-240 VAC 50/60 Hz
InterfacesHAN® 16A, serial interface
Print modes5x7 dot graphics/text
Font size20 – 40 mm
Connections Start Print, rotary encoder, opt. traffic light connection
2 inputs (all 24 V)
HousingStainless steel, IP65 300 x 200 x 250 mm (H x W x D)
Print headAnodized aluminium 40 x 40 x 186 mm (L x W x H)

Lite Z101

Z101_LITE Z101_schriften
  • 5,7" touch display
  • 7-nozzle print head
  • Single-line labelling
  • 7-20mm font size
  • Printing speed up to 60 m/min.
  • IP54 rating
  • 150 characters/sec.
  • Max. 80 digits per text field
  • Fonts available: 5 x 5 and 7 x 5
  • Automatic calendar, date printing
  • Counting functions for up to 9 characters
  • Repeat function
  • Forwards/backwards printing
  • 0°, 180° text rotation
  • Compact design
  • High reliability
Data
Ambient conditionsTemperature: 0-40°C
Humidity: 10-90% non-cond.
Electrical connection85-240VAC 50/60 Hz
InterfacesRS232 (optional)
Print modes7-dot graphics/text
Font size7 – 20 mm
Sensor Integrated for Start Print
Indicator Low ink
HousingStainless steel, IP54, 87 x 200 x 140 mm (H x W x D)
Print headStainless steel, IP54, 196 x 50 mm (L x Dia.)

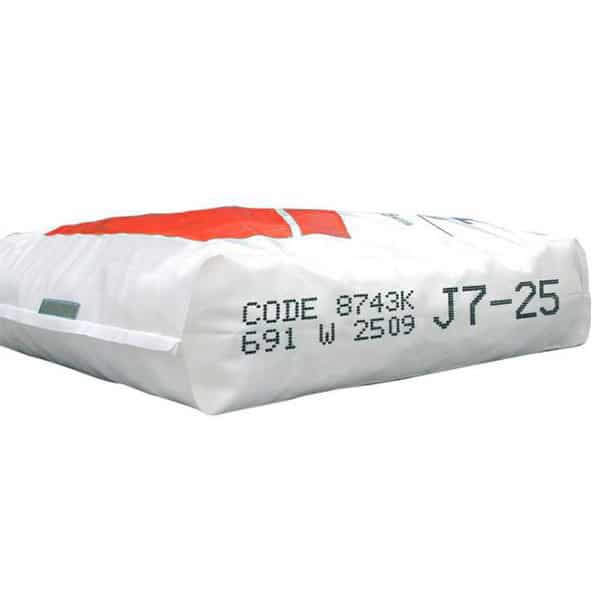

Z402

Z402 Z402 7-16-Dot
  • 7" touch display
  • Intuitive graphical menu
  • 7/16-nozzle print head
  • Single-/two-line graphics/labelling
  • 7–60 mm font size/graphics height
  • Printing speed up to 180 m/min.
  • IP54 rating
  • 266 characters/sec.
  • 4 GB internal memory, expandable by microSD card
  • Fonts: 5x4/5x5/7x4/7x5/9x7/10x8/16x10, True Type
  • Barcodes: Code 2/5, UPC-A, Code 39, EAN-13
  • Automatic calendar, date printing
  • Counting functions for up to 9 characters
  • Repeat function
  • Forwards/backwards printing
  • 0°, 90°, 180°, 270° text rotation
Data
Matching print head 7/16-nozzle print head
Ambient conditions Temperature: 0-50°C
Humidity: 10-90% non-cond.
Electrical connection85-240VAC 50/60 Hz
Print modes5/16-dot graphics/text
Font size7 – 60 mm
Connections RS-232, 10/100-Mbit/s LAN, USB 2.0, alarm indicator (BCD)
Inputs Ink level, rotary encoder, Start Print
Housing Stainless steel, IP54, 99.5 x 251 x 215 mm (H x W x D)

Z408

Z408 Z408 print head
  • 10,1" touch display
  • 7/16/32-nozzle print head
  • Up to 10-line labelling
  • 7-190 mm font size/graphics height
  • Printing speed up to 180 m/min.
  • IP54 rating
  • 266 characters/sec.
  • 4 GB internal memory, expandable by microSD card
  • Fonts:5x4/5x5/7x4/7x5/9x7/10x8/12x10/16x10/24x16/32x18, True Type
  • Barcodes: Code 2/5, UPC-A, Code 39, EAN-13
  • Automatic calendar, date printing
  • Counting functions for up to 9 characters
  • Repeat function
  • Forwards/backwards printing
  • 0°, 90°, 180°, 270° text rotation
Data
Matching print head 7/16/32-nozzle print head
Ambient conditions Temperature: 0-50°C
Humidity: 0-90% non-cond.
Electrical connection85-240VAC 50/60 Hz
Print modes7/48-dot graphics/text
Font size7 – 190 mm
Connections RS-232, 10/100-Mbit/s LAN, USB 2.0, alarm indicator (BCD)
Inputs Ink level, rotary encoder, Start Print
Housing Stainless steel, IP54 132 x 305 x 258 mm (H x W x D)
