PRINT HEADS

The scalable labelling systems for your information, texts or company logos are available in font sizes from 7 to 190 mm per print head and can be connected to the easy-to-operate Z402 (7") or Z408/PI (10.1") control consoles. Several print heads can be combined for larger fonts and graphics. A quick-change system ensures high system availability.

The resolution and font size are variable and can be extremely flexibly adjusted to the marking requirements. The print heads for the large character printers can be combined and quickly exchanged by means of Plug & Print.
The optimum print image is set by means of a freely adjustable, infinitely variable droplet size. This enables you to ensure an economical and sustainable use of resources and consumables.
Whether high-speed or standard – our reliable large character printers offer a wide range of possible combinations for all marking and everyday production requirements, so that you fulfil your printing requirements with the best level of quality available.
parallax background

Plug & Print

makes you flexible

Z402 7-Dot Schreibkopf Großschriftdrucker 3 | MSM Markiersysteme

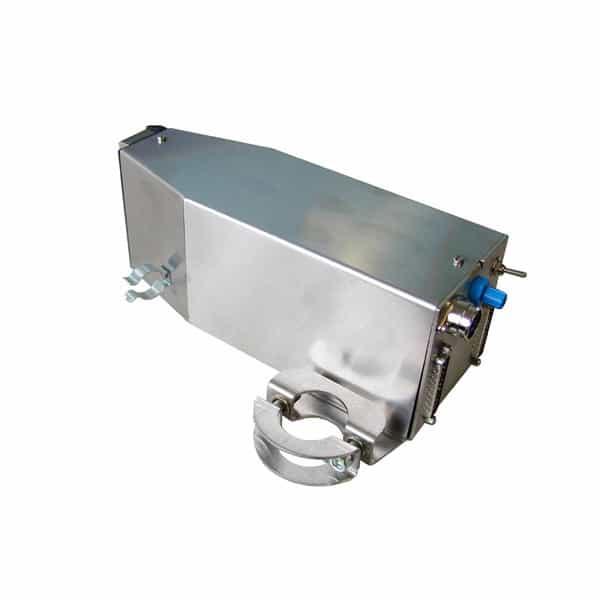

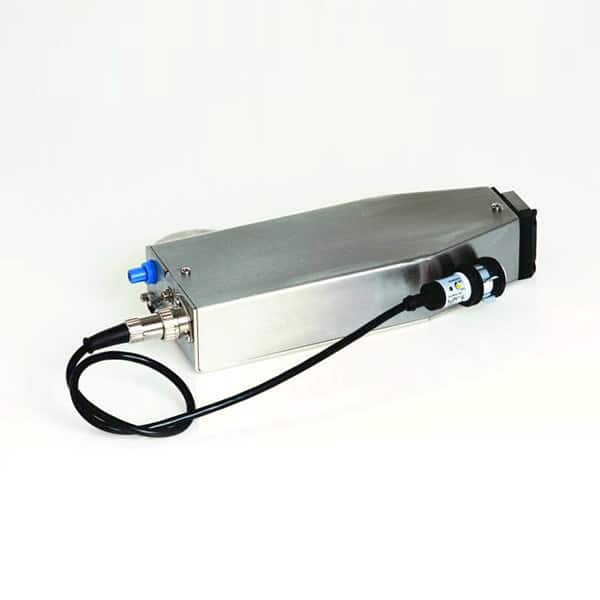

7-nozzle
print head

16-Duesen Schreibkopf Großschrift Tintenstrahl 2 | MSM Kennzeichnungssysteme

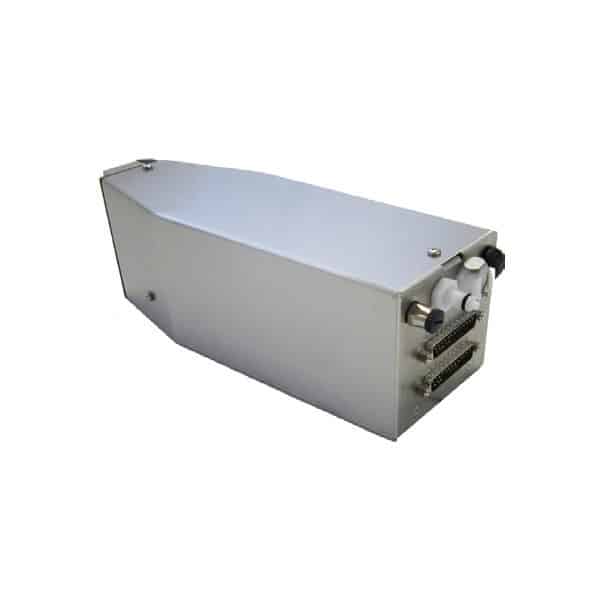

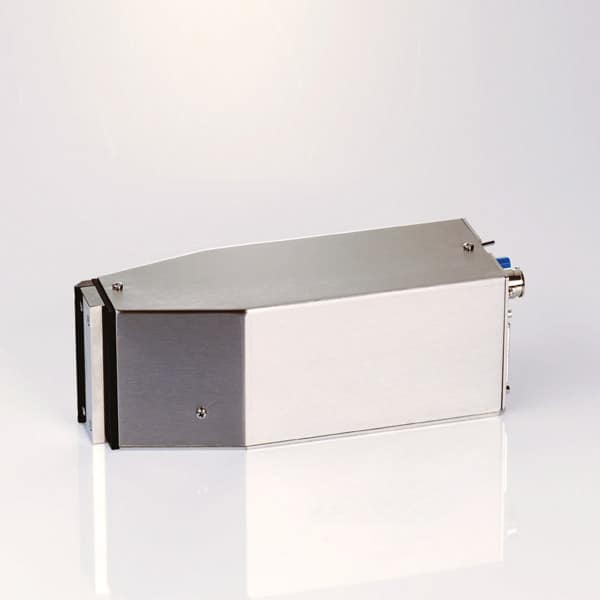

16-nozzle
print head

32-Dot Schreibkopf Großschriftdrucker 3 | MSM Kennzeichnungssysteme

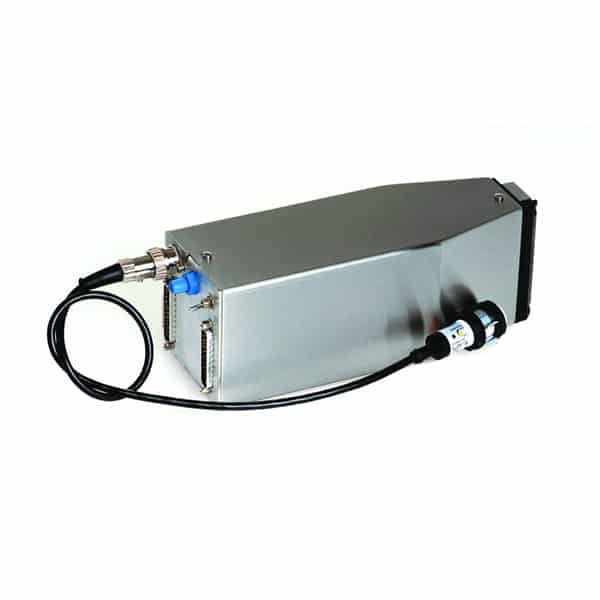

32-nozzle
print head

48-Dot Schreibkopf Großschriftdrucker 1 | MSM Markiersysteme

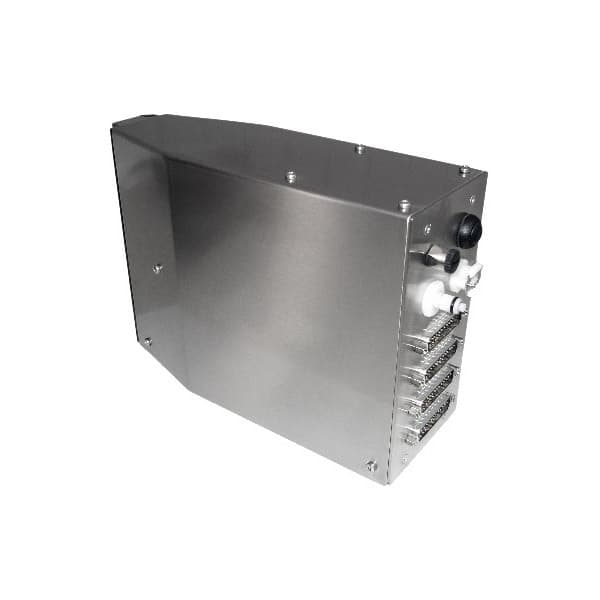

48-nozzle
print head

Print Heads

print head
Data
  7-nozzle 16-nozzle 32-nozzle 48-nozzle
Dye and pigment inks,
suitable for use w. water and solvents
Variable dot size
Nozzle cross-sections available for
different dot sizes (120 µ, 150 µ, 200 µ)
Plug & Print technology
(quick change of print heads)
Cleaning function
Font size 7 to 20 mm 16 to 60 mm 32 to 120 mm 50 to 190 mm
No. of lines of text 1 line 1 and 2 lines 1 to 4 lines 1 to 8 lines
Print matrix (fonts) 5 x 4 (1 line)
5 x 5 (1 line)
6 x 4 (1 line)
7 x 4 (1 line)
7 x 5 (1 line)
5 x 4 (1+2 lines)
5 x 5 (1+2 lines)
6 x 4 (1+2 lines)
7 x 4 (1+2 lines)
7 x 5 (1+2 lines)
8 x 6 (1 line)
9 x 5 (1 line)
9 x 7 (1 line)
10 x 8 (1 line)
15 x 10 (1 line)
16 x 10 (1 line)
5 x 4 (1 to 4 lines)
5 x 5 (1 to 4 lines)
6 x 4 (1 to 4 lines)
7 x 4 (1 to 4 lines)
7 x 5 (1 to 4 lines)
8 x 6 (1 to 3 lines)
9 x 5 (1 to 3 lines)
9 x 7 (1 to 3 lines)
10 x 8 (1+2 lines)
15 x 10 (1+2 lines)
16 x 10 (1 line)
24 x 16 (1 line)
32 x 18 (1 line)
5 x 4 (1 to 8 lines)
5 x 5 (1 to 8 lines)
6 x 4 (1 to 4 lines)
7 x 4 (1 to 4 lines)
7 x 5 (1 to 4 lines)
8 x 6 (1 to 4 lines)
9 x 5 (1 to 4 lines)
9 x 7 (1 to 4 lines)
10 x 8 (1 to 3 lines)
15 x 10 (1+2 lines)
16 x 10 (1+2 lines)
24 x 16 (1 line)
32 x 18 (1 line)
48 x 30 (1 line)
Windows fonts True Type
Barcodes Barcodes: Code 2/5, UPC-A, Code 39, EAN-13
Max. printing speed 180 m/min, depending on the application
Text, logos, graphics
Dimensions
(L x W x H in mm)
230 x 80 x 45 230 x 80 x 85 230 x 80 x 154 230 x 80 x 212
IP 65 rating
(dust/splash-water protection)
