LABEL PRINTERS

Whether tabletop label dispensers, applicators for label printers or customer-specific labeling systems, we integrate the label printers into production lines and connect to scales, PLC etc.

Industrial printers are durable, robust and very powerful. You print large quantities of labels in no time.

The durable industrial printers offer consistently excellent print quality and unprecedented reliability in demanding applications and in automation. This gives you an ideal labeling system for a wide range of applications, as well as in process critical processes and for your specialty labels.
parallax background

IMPRESSIVE

Label printers for any application

B-EV4T
Compact label printer

B-FV4T
Energysafer desktop printer

B-SA4T
Compact toploader

B-EX4T
Standard-format industrial printer


B-EX6T
6" wide-format industrial printer

B-SX8T
8" wide-format industrial printer

B-852
8" wide-format industrial printer

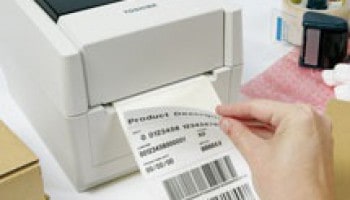

B-EV4T

If you're looking for a quick on-demand labeling and ticketing solution right from your desk, then you've found it now: the reliable B-EV4 product line from MSM.

The market-leading features, exceptional build quality and reliability allow you to produce professional labels quickly and easily at the push of a button.


  • Compact professional label printing
  • Design and print directly from the PC
  • Devices with 203 or 305 dpi print resolution
  • Easy integration into existing systems
  • Incredible build quality in a sturdy plastic case
Design and print directly from your PC. Use Windows® drivers and the free Bartender UltraLite software.

Print tickets and labels from 25.4mm up to the market leading 999mm.

The high-precision thermal printer (108 mm print width) has a sturdy, double-walled plastic cover to protect the interior against dust and external influences, and for consistently perfect results.

The printhead is easily accessible, as well as the paper guide and sensors. Label rolls or paper rolls can be inserted in no time, with the spring-loaded guide of the media holder automatically aligning the paper.
Model / SeriesB-EV4T
Print resolution dpi203300
Print width up to mm108105,7
Paper width up to mm25,4 bis 11225,4 bis 112
Print speed up to mm/s101,6127
Thermo-transfer printing technologyyesyes
Thermo-direct printing technologyyesyes
Label rolls Ø to mm127,0 (max.)127,0 (max.)
Dimension (WxHxD)198 mm x 173 mm x 258 mm198 mm x 173 mm x 258 mm

B-FV4T

The B-FV4T Desktop Printer Series can be easily integrated into existing systems. Compact, elegant and subtle, but powerful and flexible for any environment and application - a printer series that is truly universal!

Your labeling assistant - Flexible in a variety of printing applications.

Industry: Commerce, Transportation & Logistics, Manufacturing, Healthcare, Courier Services, Advertising

Areas of application: shelf labels, special price labels, product labels, delivery notes, warehouse labels, pallet labels, tickets, spare parts labels, picking, patient wristbands, sample labeling, drug labeling, stamp labeling, inventory labels

The development of the B-FV4 series focused on ease of use and maintenance. Thanks to the drop-in function, label rolls can be changed quickly and easily, and the print head and transport roller can be exchanged via Snap-In Technology.

Combined with the renowned Toshiba reliability, the B-FV4 series is a rugged and stable marking solution for any environment.

To further reduce the operating costs of the B-FV4 thermal transfer printer, ink ribbons with a run length of up to 300 m can be used. This improves the efficiency of the workflow as it requires less media change.

Ribbons are available in various widths and grades and are compatible with the tapes of the existing MSM Desktop Printer series. This allows easy replacement or upgrade with these printers.
Model / SeriesB-FV4T
Print resolution dpi203300
Print width up to mm108105,7
Paper width up to mm25,4 bis 11825,4 bis 118
Print speed up to mm / s152,4152,4
Thermo-transfer printing technologyyesyes
Thermo-direct printing technologyyesyes
Label rolls Ø to mm127,0 (max.)127,0 (max.)
Dimension (WxHxD)220 mm x 182 mm x 279 mm220 mm x 182 mm x 279 mm

B-SA4TP / B-SA4TM

The B-SA4TP and B-SA4TM label printers offer the capabilities of an industrial label printer, while still being exceptionally robust and space-efficient. Thanks to the central label guide, label materials of various sizes can be easily processed.

Both printer models come standard with USB, parallel and Ethernet interfaces, a WLAN interface is optionally available. Further expansion options are: cutting knife, rotary knife and dispensing module.
Model / SeriesB-SA4TP / TM
Print resolution dpi203300
Print width up to mm104105,7
Paper width up to mm118118
Print speed up to mm / s152,4152,4
Thermo-transfer printing technologyyesyes
Thermo-direct printing technologyyesyes
Label rolls Ø to mm200 / 152,4 (TP)200 / 152,4 (TP)
Dimension (WxHxD)291 mm x 308 mm x 490 mm291 mm x 308 mm x 490 mm

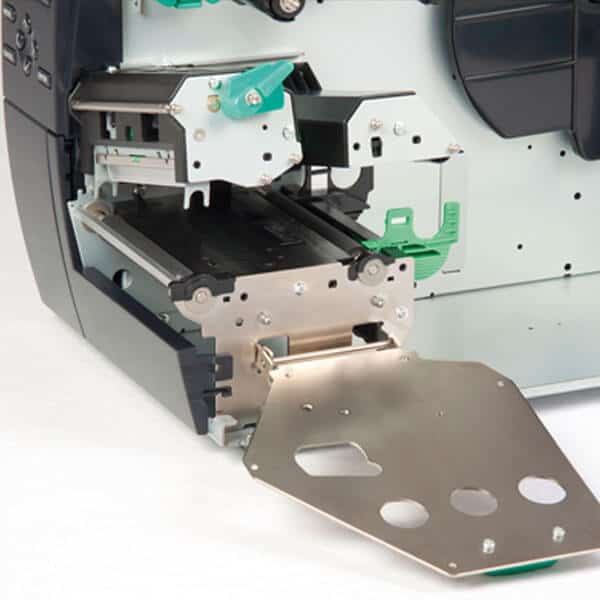

B-EX4T

The new premium label printer B-EX4T1 (near edge printhead) is the result of years of experience in AutoID and label printing. The B-EX printer series combines proven features with even greater performance and reliability.

By default, the industrial label printer is equipped with network and USB ports, with parallel, serial and wireless options available. As a further option, the B-EX4T1 can be equipped with a knife, rotary knife, peel-off and internal rewinder, RFID kit and Ribbon Save function.
Model / SeriesB-EX4T1
Print resolution dpi203300
Print width up to mm104104
Paper width up to mm120120
Print speed up to mm/s355355
Thermo-transfer printing technologyyesyes
Thermo-direct printing technologyyesyes
Label rolls Ø to mm>200200
Dimension (WxHxD)278 mm x 310 mm x 460 mm278 mm x 310 mm x 460 mm

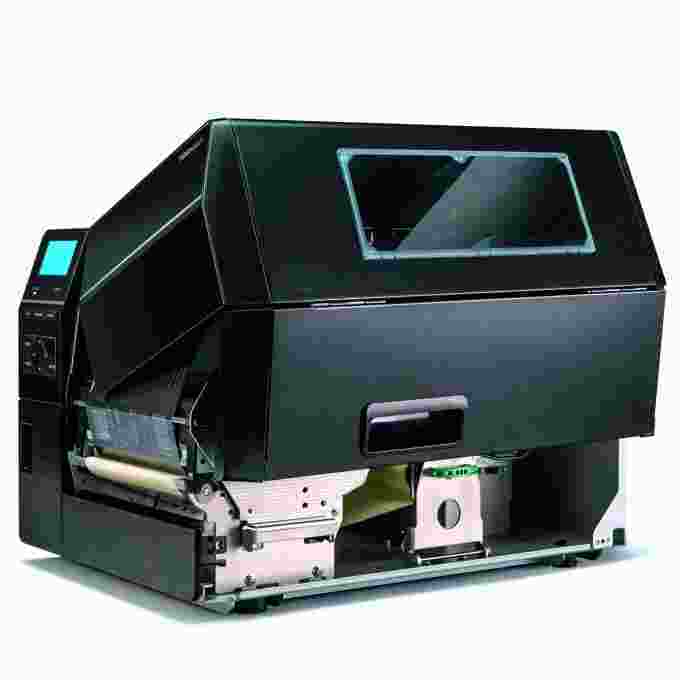

B-EX6T

The B-EX6T1 industrial printer series with a printing width of 6 inches combines market-leading technology, user-friendliness and reliability.

The standard foil-saving feature of the T1 models, together with the up to 800-meter-long ribbons, provides for a needs-based material consumption.

Longer ink ribbons reduce set-up and downtime.
Model / SeriesB-EX6T1 / 203 dpiB-EX6T1 / 305 dpi
Printing technologyThermodirect / thermotransferThermodirect / thermotransfer
Print head type dpiNear EdgeNear Edge
Print resolution dpi203 (8 dots/mm)305 (12 dots/mm)
Print width up to mm160160
Carrier paper width up to mm50 – 16550 – 165
Print speed up to mm/ s305 (12 ips)305 (12 ips)
Thermo-transfer printing technologyyesyes
Thermo-direct printing technologyyesyes
Label rolls Ø to mm200200
Dimension (WxHxD)331 mm x 310 mm x 460 mm331 mm x 310 mm x 460 mm

B-SX8T

Thanks to Toshiba's pioneering technology, the B-SX6 and B-SX8 models offer extremely high printing speeds. With Near Edge printhead technology you get a brilliant print. With a maximum print width of 170.6 mm or 213.3 mm and a resolution of 305 dpi, the B-SX6 or B-SX8 can also print large format labels in RFID mode, at top speed.

The printhead technology offers the highest print quality with low friction and a straight flat paper feed. The Ribbon Save function does not consume any ribbon in the unprinted feed. When processing RFID labels, the printhead can be lifted over the chip to protect it.

Both printer models come standard with USB, parallel and LAN interfaces. A WLAN and serial interface are available as options. Further expansion options are: cutting knife, rotary knife, dispensing module, start-stop interface, real-time clock (RTC), ribbon saving function (ribbon saving function: standard on B-SX8).
Model / SeriesB-SX6B-SX8
Print resolution dpi305305
Print width up to mm170,6213,3
Paper width up to mm175225
Print speed up to mm/s203203
Thermo-transfer printing technologyyesyes
Thermo-direct printing technologyyesyes
Label rolls Ø to mm200200
Dimension (WxHxD)416 mm x 395 mm x 289 mm416 mm x 395 mm x 289 mm

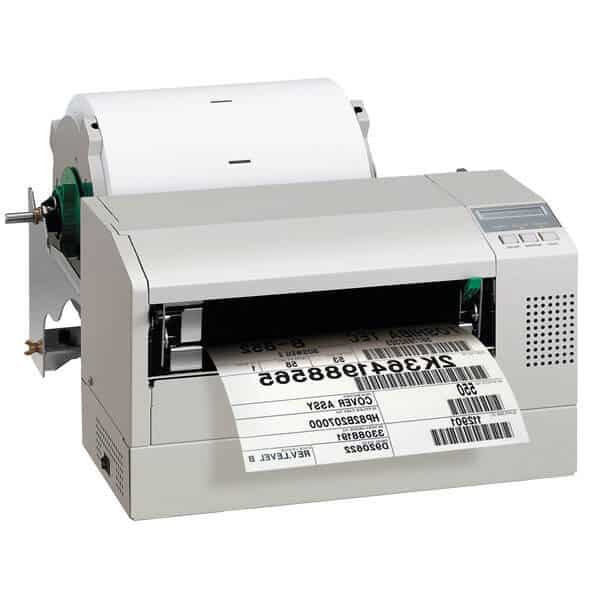

B-852

The B-852 (Flat Head Printhead) wide-format printer offers fast, high-speed processing and low cost of ownership. The complete label A4 printing width of 216.8 mm with a high print resolution of 300 dpi is used. This will print your commission notes and delivery papers as quickly as possible.

The printer model B-852 comes standard with USB, LAN and 1x parallel interface. A WLAN and a serial interface are available as options. Further expansion options are: cutting knife, start-stop interface and real-time clock (RTC).
Model / SeriesB-852
Print resolution dpi300
Print width up to mm216,8
Paper width up to mm242
Print speed up to mm/s152,4
Thermo-transfer printing technologyyes
Thermo-direct printing technologyyes
Label rolls Ø to mm230
Dimension (WxHxD)385 mm x 243 mm x 181 mm
Dimension (WxHxD) with material holder385 mm x 243 mm x 427 mm
